A Management Framework for Manufacturing Process: sub-frame CONTROL

As Engineer-To-Order (ETO) or project-based manufacturers, producing prototypical and unique tools designed to Client specifications, we are called to face the need for managing, for each customer order, a wide and unique, i.e. special and not repeatable, set of parts, bills of material, routings, engineering changes and variations and so on, that require to be satisfied by a peer special, flexible, custom organization and monitoring of the manufacturing process.

We implement a company PEC (Plan, Execution, Control) management framework for the manufacturing process, that, while accomplishing its basic mission of streamlining and monitoring manufacturing processes, preventing any undesirable deviation from design requirements and constraints, at the same time emphasizes and stimulates the attitude and aptitude of the manufacturing process to contributing to the continuous debugging and improvement of the tools, combining and multiplying the power of the simulation driven design environment with the concreteness and deep competence coming from decades of manufacturing experience.
A solid and lean organizational structure supports and reinforces the framework.

Enjoy below some process snapshots captured in the manufacturing sub-frame CONTROL.



Raw Material Certifications

> Construction Steels Certification EN 10204
Certificate of Compliance EN 10204 2.1

> Construction Steels Certification EN 10204
Inspection Certificate EN 10204 3.1

> Construction Steels – Non Destructive Testing

> Cast Aluminium Bronze – Inspection Certificate EN 10204-3.1

> Cast Iron – Inspection Certificate EN 10204-3.1





Treatments Certifications

> Thermal Treatments (Hardening and Tempering) Test Report

> Themochemical Treatments (Gas Nitriding) Test Report

> PVD Coating Certificate of Quality and Conformity



Die Part Inspection and Marking (Coding and Tracking)

> CMM Portable Arm

> Hardness Test

> Hardness Test (Portable Tester)

> Surface Roughness Measurement

> Marking (Coding and Tracking)



Stamped Part Inspection

> Stamped Part Inspection




Capability Studies

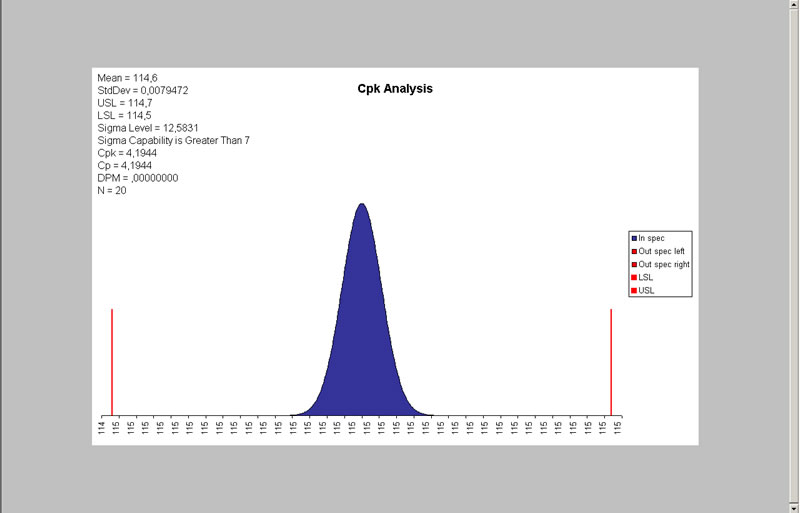

> Capability Studies Screenshots
